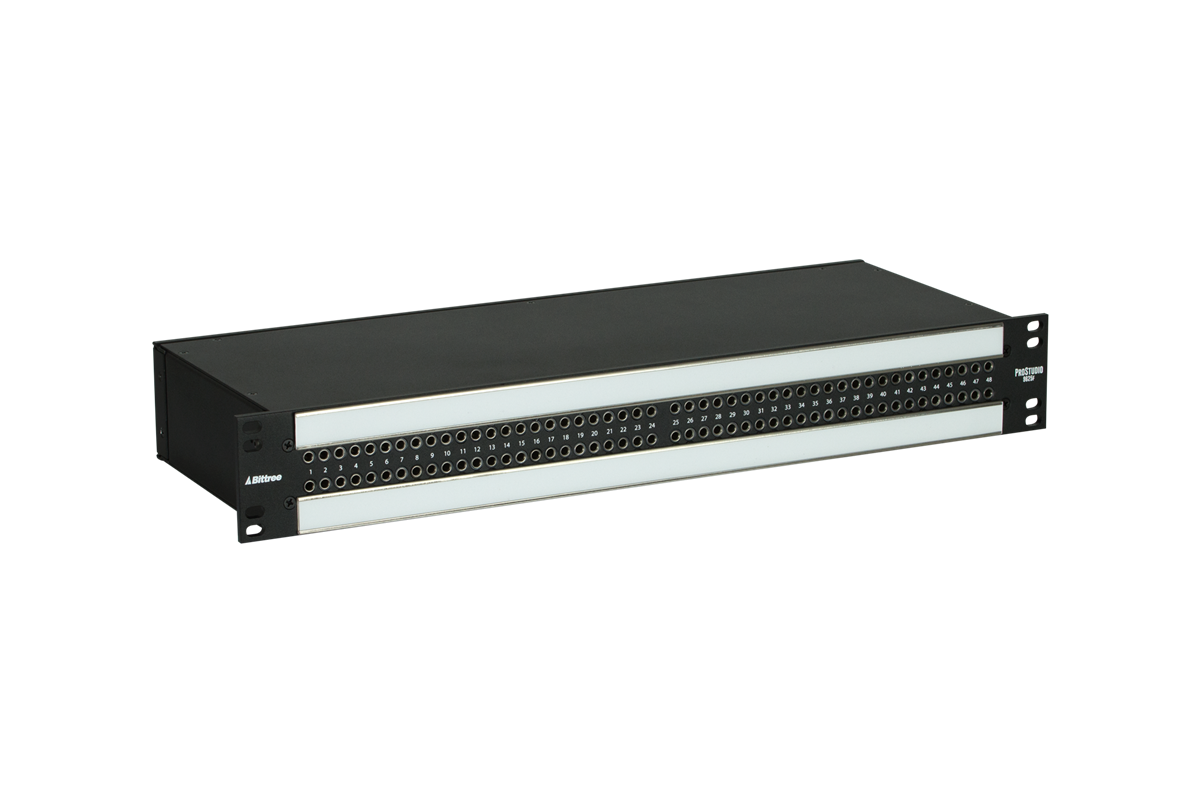

Front Selectable TT (Bantam) Audio Patchbay, 1.5RU Height, DB25 Rear Interface
High-density 2x48 jack configuration with mono (even) jack spacing
DB25 rear interface (12 x 25-pin female DB25 connectors)
- Protools, Tascam DB25 Pinout
Selectable normalling and grounding
- Ships full normal with bussed grounds
Circuits can be easily changed via shunts under both designation strips
Normalling
- circuits can be set to full normal, half normal or non-normal
- Grounding – can be set to bussed, isolated, or looped
Analog and Digital 110 ohm compatible
1-48 left-to-right numbering on front panel for easy circuit identification
2 x DS800-10 designation strips, "Over/Under" orientation
7" (17.78 cm) deep fully enclosed chassis
RoHS Compliance
For more information on this or any other Bittree product, visit www.bittree.com.
|
|
|
