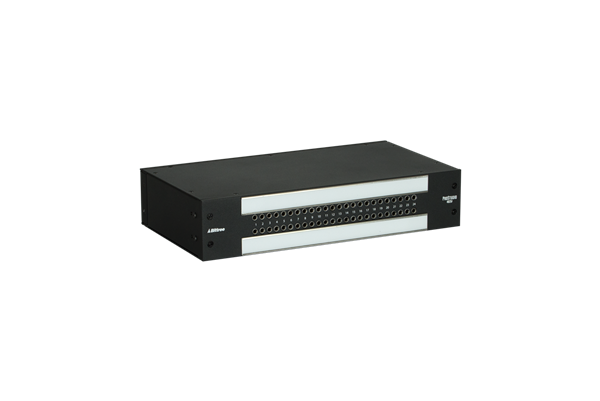

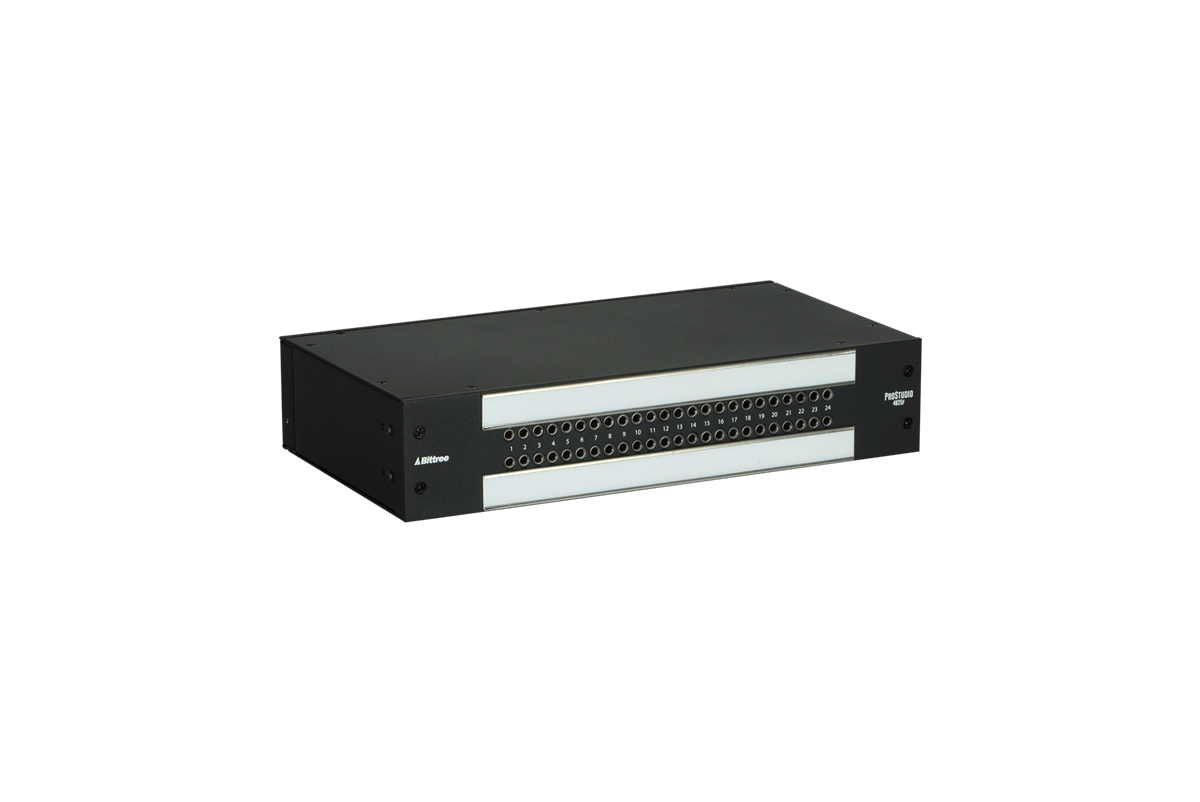

Front Selectable TT (Bantam) Audio Patchbay, 1.5RU Height, DB25 Rear Interface
Stand alone desktop patchbay with 4 rubber feet
Designed to fit perfectly below the API 500-6B 6-slot Lunchbox Chassis
2x24 jack configuration with mono (even) jack spacing

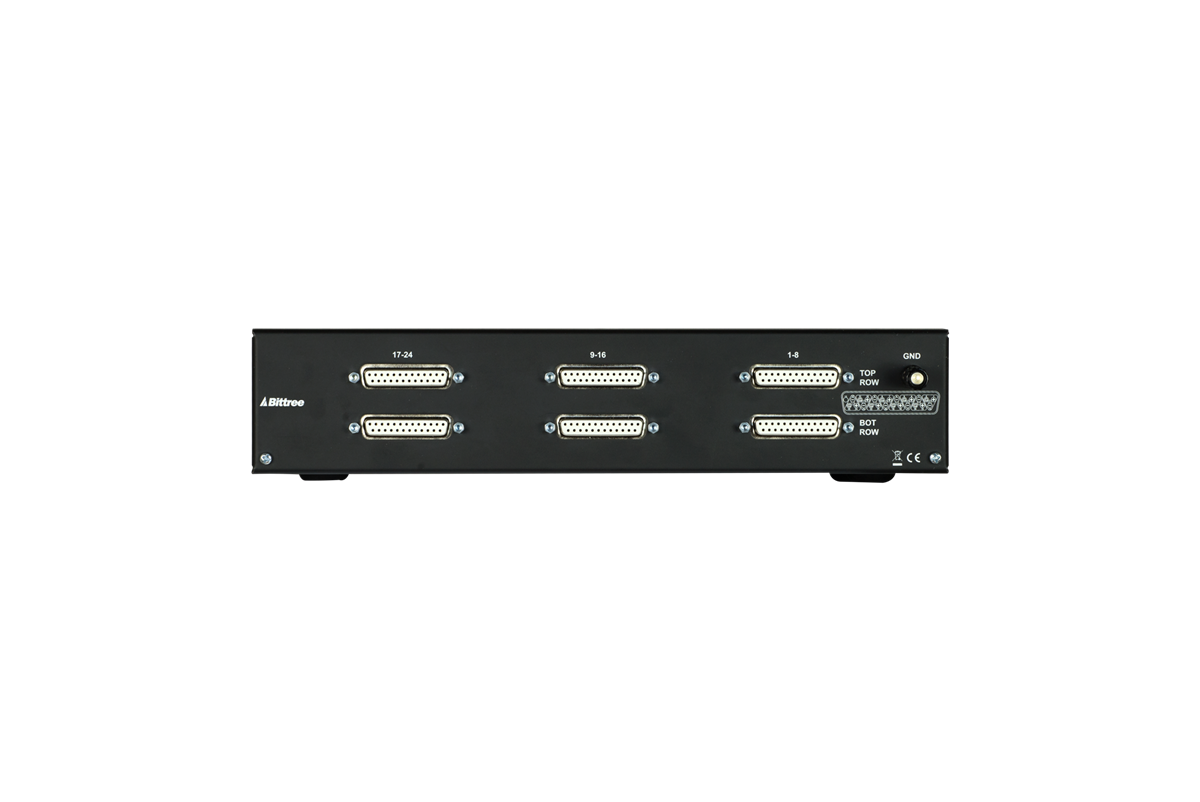

DB25 rear interface (6 x 25-pin female DB25 connectors)
- Protools, Tascam DB25 Pinout
Selectable normalling and grounding
- Ships full normal with bussed grounds
Circuits can be easily changed via shunts under both designation strips
- Normalling – circuits can be set to full normal, half normal or non-normal
- Grounding – can be set to bussed, isolated, or looped
Analog and Digital 110 ohm compatible

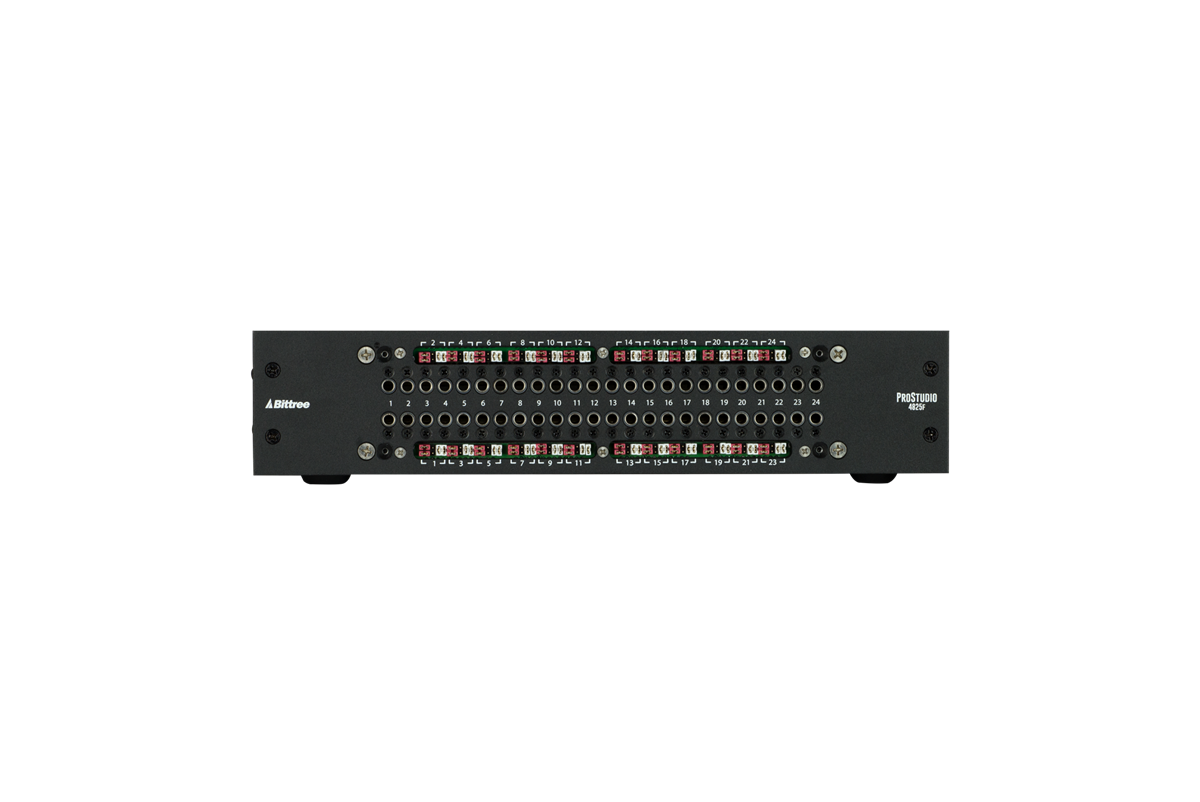

1-24 left-to-right numbering on front panel for easy circuit identification
2 x DS-PS4825/S designation strips, "Over/Under" orientation
7" (17.78 cm) deep fully enclosed chassis
RoHS Compliance
