Premium 8-Channel Mogami 2932 DB25 to RCA Snake Cable
Our Mogami & Neutrik Gold DB25 snakes are meticulously crafted to provide premium performance. Every conductor and ground is hand-crimped with mil-spec Gold HD pins to guarantee the highest signal integrity from your DB25 connection. Designed for professionals seeking more than standard off-the-shelf cables, these snakes can be customized to perfectly suit your setup. With DB25 becoming the standard in modern studio equipment, Pro Audio LA delivers a top-quality, tailored solution—without the hefty price.
Built for the rigors of professional studio work, this 8-channel DB25 to RCA snake offers exceptional signal integrity and rock-solid durability. At its heart is the acclaimed Mogami W2932 cable, optimized for both analog and AES/EBU digital use. Each channel incorporates miniature quad conductors that deliver:
-
Over 60 dB of noise rejection at 10 kHz for pristine signal isolation
-
Ultra-low capacitance of 44 pF/ft (144 pF/m) to preserve high-frequency detail
-
Crosstalk performance better than –80 dB at 1 kHz, keeping channels clean and distinct
This makes the cable perfect for connecting multichannel converters, summing mixers, patchbays, and more, ensuring clean, balanced signals even over long runs.

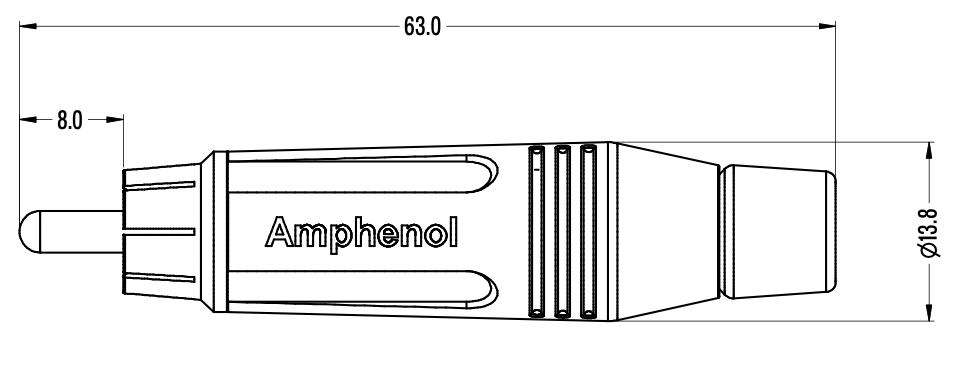

The cable terminates on one end with a DB25 male connector wired to the Tascam analog pinout standard for seamless compatibility with most pro audio interfaces and gear. On the other end, each channel fans out into premium Amphenol Gold RCA, offering:
-
Robust die-cast zinc alloy shell with a black finish, providing mechanical strength and durability for professional audio applications
-
Equipped with gold-plated brass alloy contacts, ensuring reliable signal transmission and resistance to corrosion
-
Includes a flexible black grommet that protects the cable from strain and potential damage, enhancing the longevity of the connection
To protect the cable bundle and maintain studio tidiness, the fanout is wrapped in Techflex Flexo PET sleeving—a flexible, expandable braided material that resists abrasion, chemicals, and UV exposure. The sleeving not only enhances durability but also provides a clean, organized appearance. Multiple colors are available to match your studio’s aesthetic and coding preferences.
Customization is straightforward and flexible, allowing you to specify:
-
Cable length from short patch sizes up to long runs to fit any setup
-
Fanback length customizable for neat rack or floor management
-
Techflex sleeving color options for visual organization and style
-
Color-coded connector rings or boots to identify individual channels quickly
This fully customizable design ensures your snake cable integrates perfectly with your workflow and environment, making it an essential tool for any professional audio setup.
Summary of Features:
-
Mogami W2932: 8-channel AES/EBU-rated quad multicore cable with 26 AWG conductors
-
DB25 male connector: Tascam analog pinout compatibility
-
Amphenol Gold RCA connectors: gold-plated brass alloy contacts, ensuring reliable signal transmission and resistance to corrosion
-
Techflex Flexo PET sleeving: abrasion and UV resistant, flexible, expandable, available in multiple colors
-
Customizable cable length, fanback length, and sleeving color
Learn all about analog DB25 snakes and other cables in our blog - HERE!
|
|
|
 |
|
 |
|
