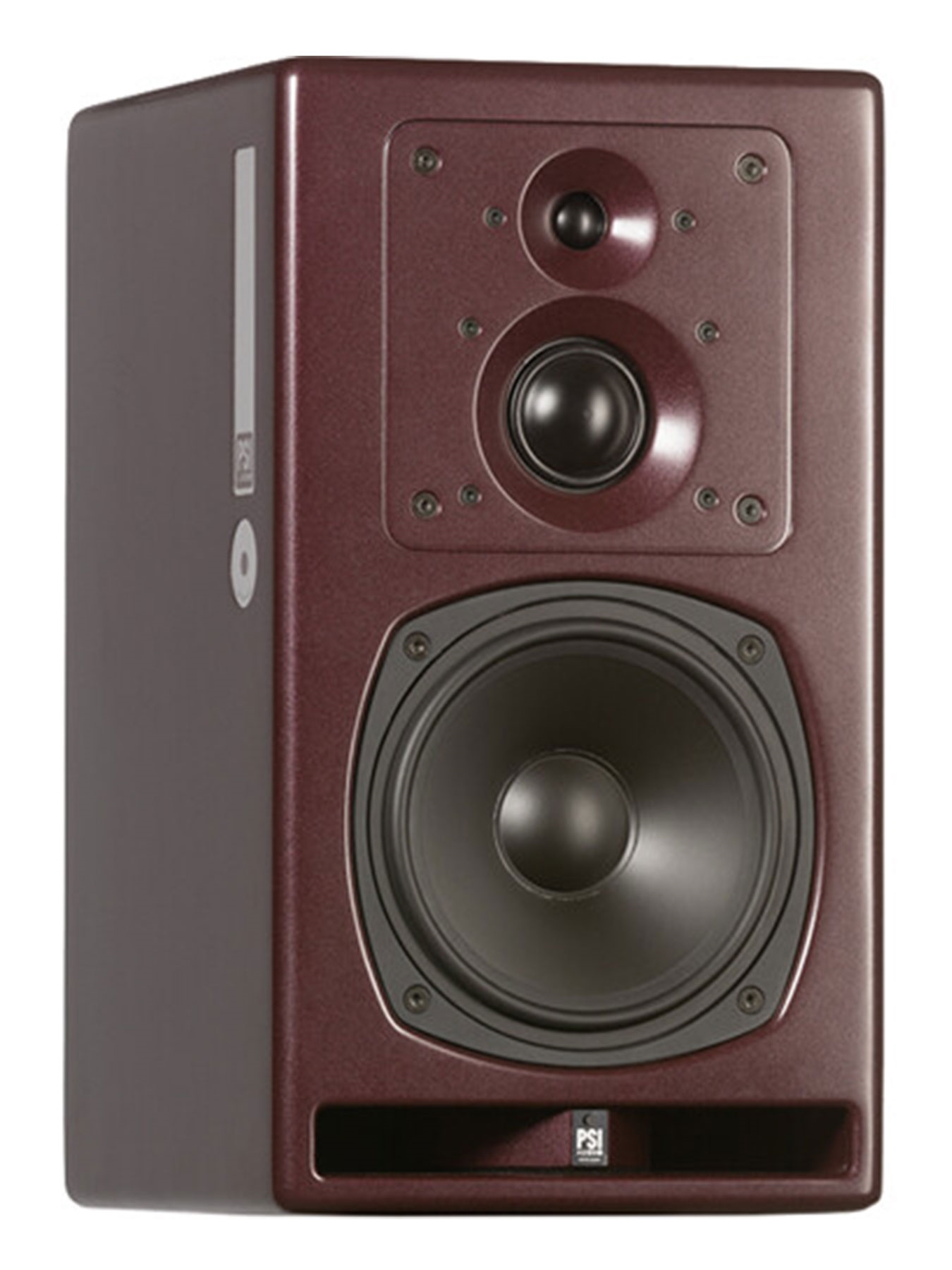

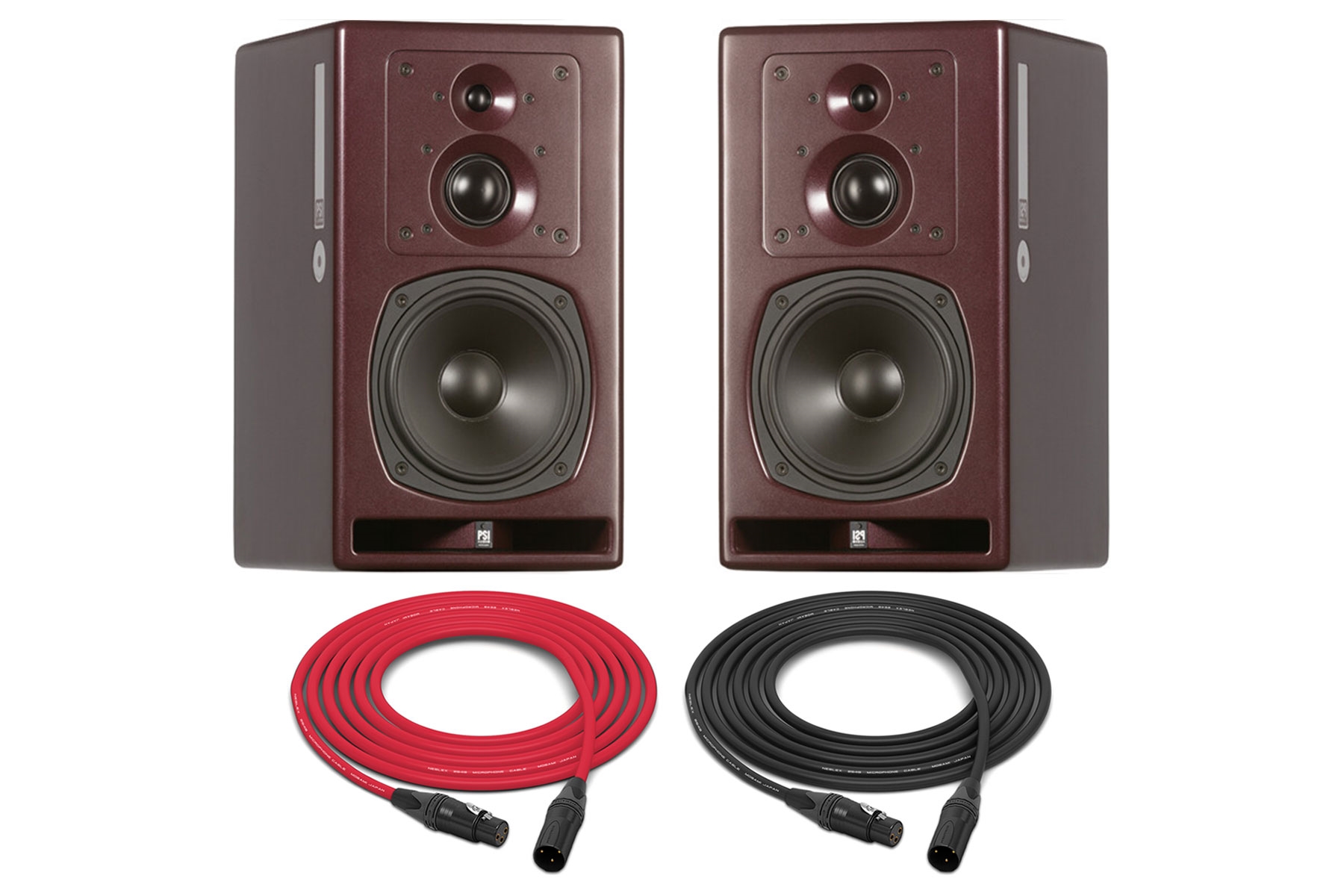

PSI Audio A23-M - 300W 3-Way Active Studio Monitor - Pair (Red)
- Compact 3-Way Main Reference Monitor
- 8.3" Woofer, 4.7" Mid & 3.9" Tweeter
- Class-GH and Class-AB Amplifiers
- Tri-Amp: 140W + 70W + 50W (RMS)
- Frequency Response: 34 Hz to 23 kHz
- Max SPL: 122 dB (Pair)
- Designed for Stereo & Multichannel Use
- Mid-High Driver Rotates 90°
- Volume and Roll-Off Controls
- Handmade in Switzerland
Audio engineers and professional studios looking for a compact, 3-way studio reference monitor will be impressed with the metal black PSI Audio A23-M, a single active studio reference monitor offering tonal balance, high-resolution detail, and an precise phase response for dependable accuracy in music, broadcast, and postproduction. The tri-amplifier design delivers 140W to the 8.3" woofer, 70W to the 4.7" midrange driver, and 50W to the 3.9" tweeter, which combine to provide a frequency response of 34 Hz to 23 kHz and a maximum SPL of 120 dB per pair.
The tweeter—identical to the one used in PSI Audio's flagship A25-M—is handcrafted in-house to ensure performance and accuracy. The rear panel offers a balanced XLR input and features a volume control and a roll-off control for optimizing the low frequencies for standalone use or when using an optional subwoofer. The mid-high driver can be turned 90°, allowing for the speaker to be placed in a horizontal position while maintaining proper dispersion. The PSI Audio A23-M includes a power cable, anti-slippage stickers, and an individual frequency-response diagram.
Benefits
- Designed for midfield use in music recording, mixing and mastering, broadcast, and postproduction applications
-
Tri-amp design with Class-GH amps for bass and midrange drivers and a Class-AB amp for the tweeter
-
Add the Sub A125-M or the Sub A225-M (both available separately) to create a 4-way system with ultraprecise control on all frequencies
-
100% analog with no DSP
-
Phase compensated for a better stereo image
-
Handmade midrange driver and tweeter
-
Individually calibrated
-
Handmade in Switzerland
For more information on this or any other PSI Audio product, visit www.psiaudio.swiss.
|
|
|
 |
|
 |
|
|
|
