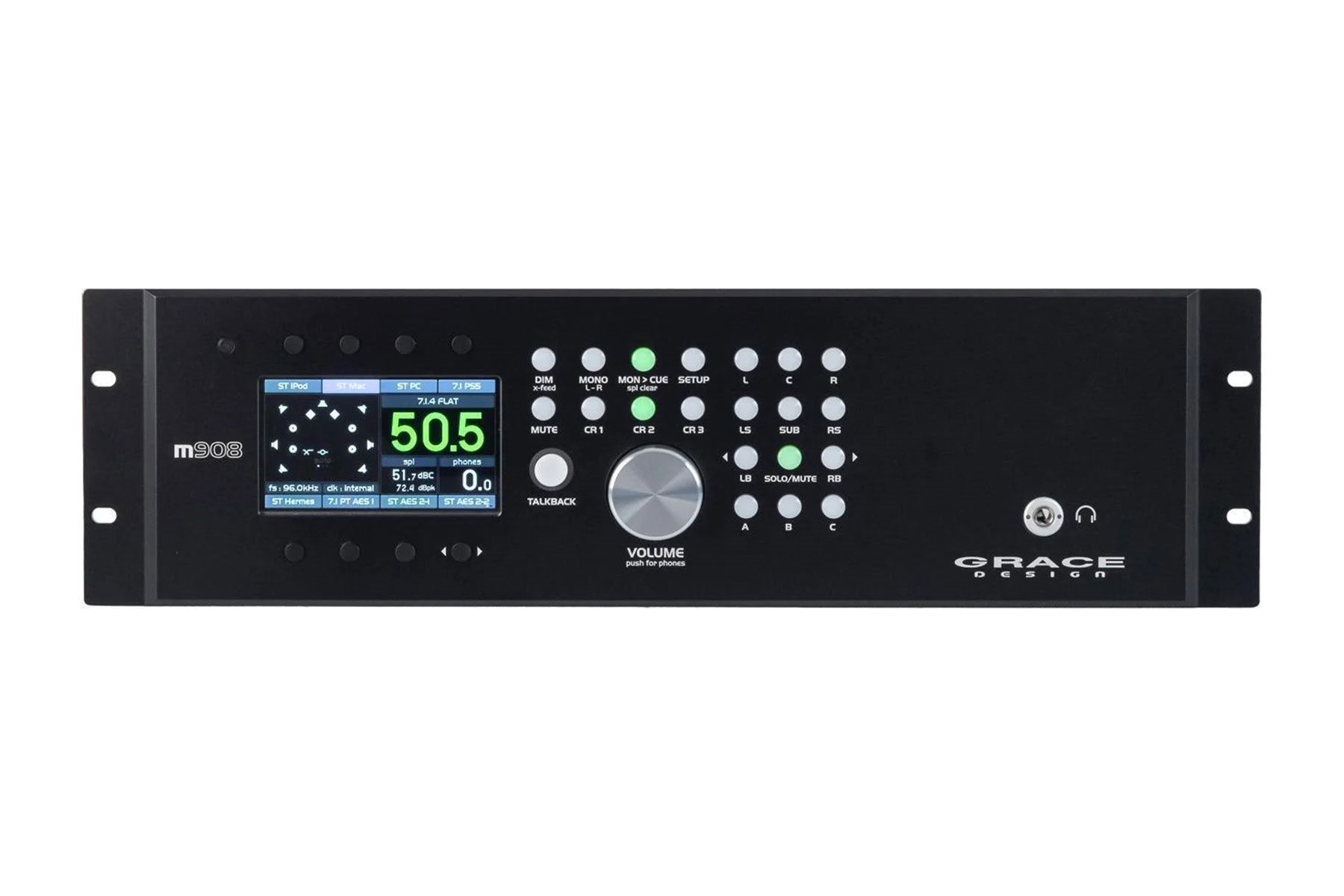

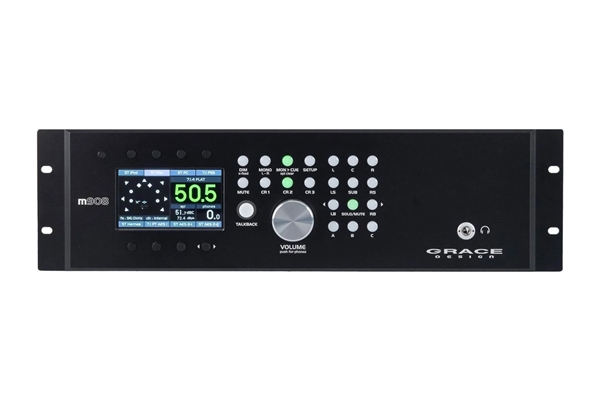

Quick look at Grace Design m908-RMR
The Grace Design m908-RMR is a high-end monitoring controller designed for stereo, surround, and immersive workflows up to 22.2 channels. It delivers extremely transparent monitoring with advanced DSP, high-end conversion, and precise control so you hear exactly what’s in your mix.
It includes tools like room correction, bass management, downmixing, and delay calibration, along with a reference-grade headphone amp and ultra-stable clocking.
With extensive digital and analog connectivity plus expandable I/O options, it’s a flexible, future-ready hub for professional studios working in complex modern production environments.
Grace Design m908-RMR Features:
- Immersive-format monitor controller with rackmount remote
- Formats supported: 2.1 through 22.2 channels
- 24-channel AES3 digital I/O; 16-channel analog output
- 16-channel ADAT Lightpipe in; 24-channel USB input
- AES3, S/PDIF, and TOSlink stereo inputs
- Latest-generation Grace Design A/D and D/A converters
- 4th-generation s-Lock PLL clocking system for vanishingly low jitter
- High-resolution volume control
- Powerful room correction equalization
- Comprehensive onboard bass management
- Channel level and delay calibration
- Comprehensive downmix control
- Built-in SPL meter and pink noise source

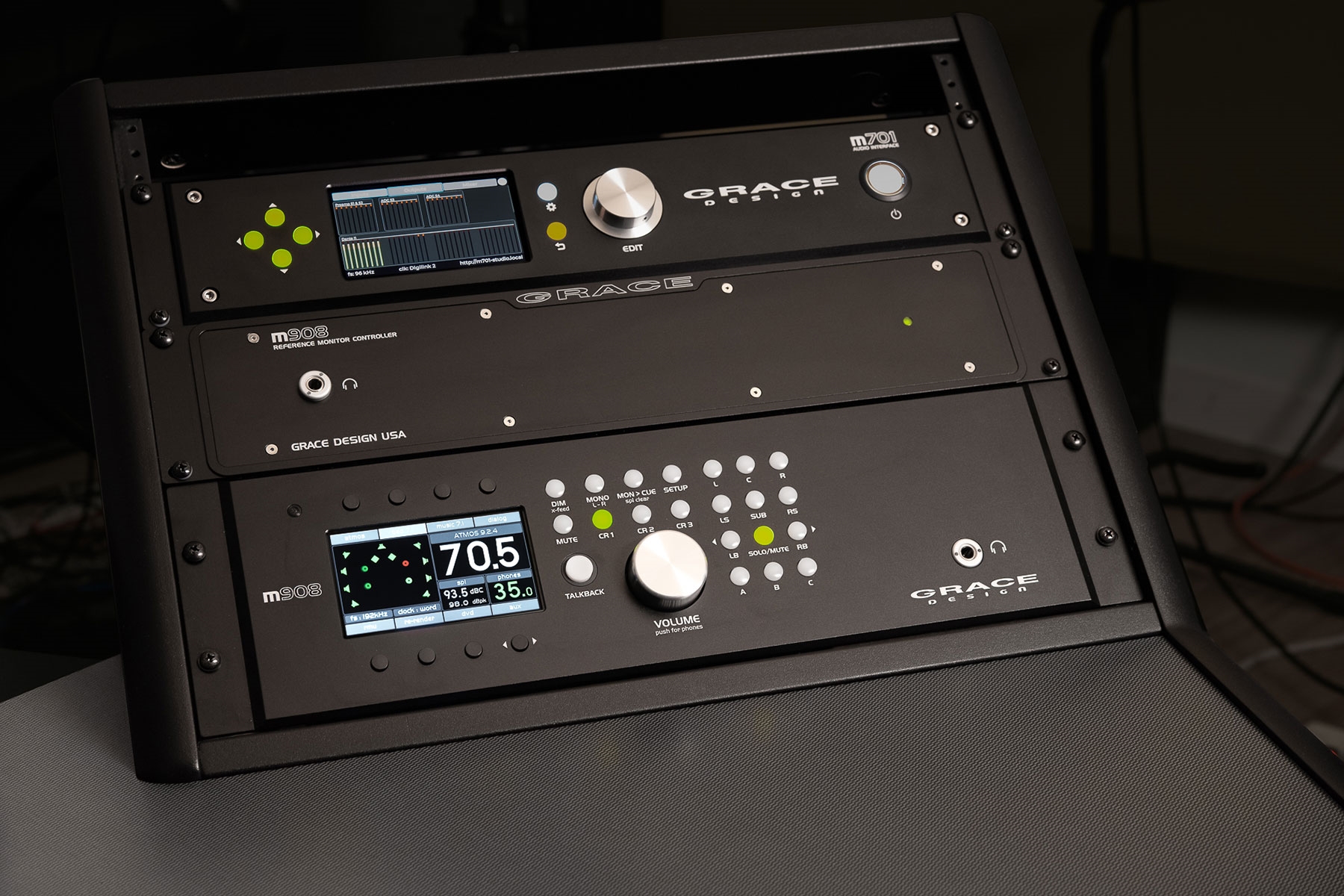

- Intuitive rackmount remote control unit for access to all system and calibration controls
- Dual-redundant external power supply
- Reference-grade headphone amplifier with cross-feed
- Flexible talkback system with built-in mic on remote control
- Mic input for external talkback mics
- Up to 8 stereo CUE paths
- 4 general-purpose input and output pins for interfacing with external systems
Are you delivering audio in immersive formats? The Grace Design m908-RMR is a powerful monitoring controller designed to streamline complex workflows and support everything from stereo and surround to immersive setups of up to 22.2 channels.
Built from the ground up with cutting-edge Grace Design technology, the m908-RMR combines high-resolution DSP processing, next-generation A/D and D/A conversion, and an intuitive control interface to deliver a true all-in-one monitoring solution for modern production environments.
At its core, the m908-RMR is designed to ensure absolute monitoring accuracy—so you hear exactly what you’re recording and mixing, nothing more and nothing less. This level of transparency is essential for achieving precise balances, EQ decisions, and optimal mic placement in professional workflows.
It also includes a comprehensive suite of advanced mix tools, including downmix control, channel level and delay calibration, onboard room correction EQ, bass management, and a reference-grade headphone amplifier. Grace’s fourth-generation s-Lock PLL clocking system further reduces jitter for extremely stable, high-fidelity monitoring.
Connectivity is equally extensive, making the m908-RMR suitable for even the most demanding studio configurations. It features 24-channel AES3 digital I/O, 16-channel analog outputs, 16-channel ADAT Lightpipe input, 24-channel USB audio, plus AES3, S/PDIF, and TOSLINK stereo inputs.
The system is also fully expandable, with optional modules for Dante or DigiLink connectivity adding up to 32 additional channels of I/O, as well as optional analog input modules offering up to 16 channels of conversion.
A monitor controller is the central reference point of any professional studio. It’s what ensures you can trust what you’re hearing at every stage of the production process. The m908-RMR provides that critical foundation with uncompromising accuracy, flexibility, and scalability for evolving production needs.
For more information on this or any Grace Design product, visit www.gracedesign.com.
|
|
|
 |
|
 |
|
