Configure Your Own Bittree ProStudio PS4825F | 2x24 TT 500-Series Patchbay w/ Custom Mogami & Neutrik Gold Cabling
Configure Your Own Bittree ProStudio PS4825F | 2x24 TT 500-Series Patchbay w/ Custom Mogami & Neutrik Gold Cabling

Alternative Views:




Our Price: $755.10



Free Shipping
Availability: Click HERE for Lead Times
Product Code: BITTREE-PS48DB25F-MOGAMI

Cable 1 -- Position A1





< Connected To
Cable 2 -- Position B1





< Connected To
Cable 3 -- Position A2





< Connected To
Cable 4 -- Position B2





< Connected To
Cable 5 -- Position A3





< Connected To
Cable 6 -- Position B3





< Connected To

Qty:
Description

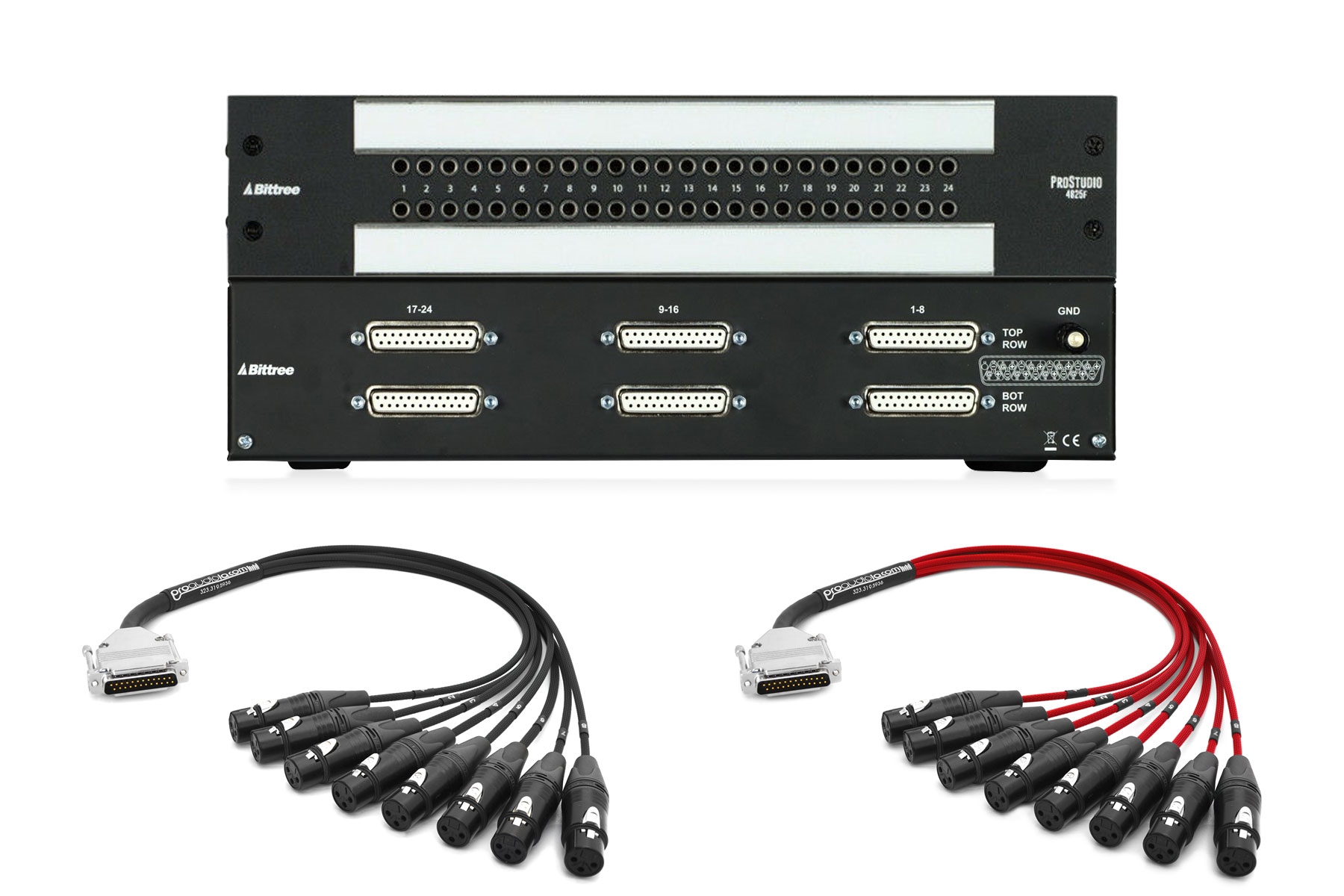

  • Customize Up To 6 Mogami DB25 Snakes in Various Configurations & Lengths

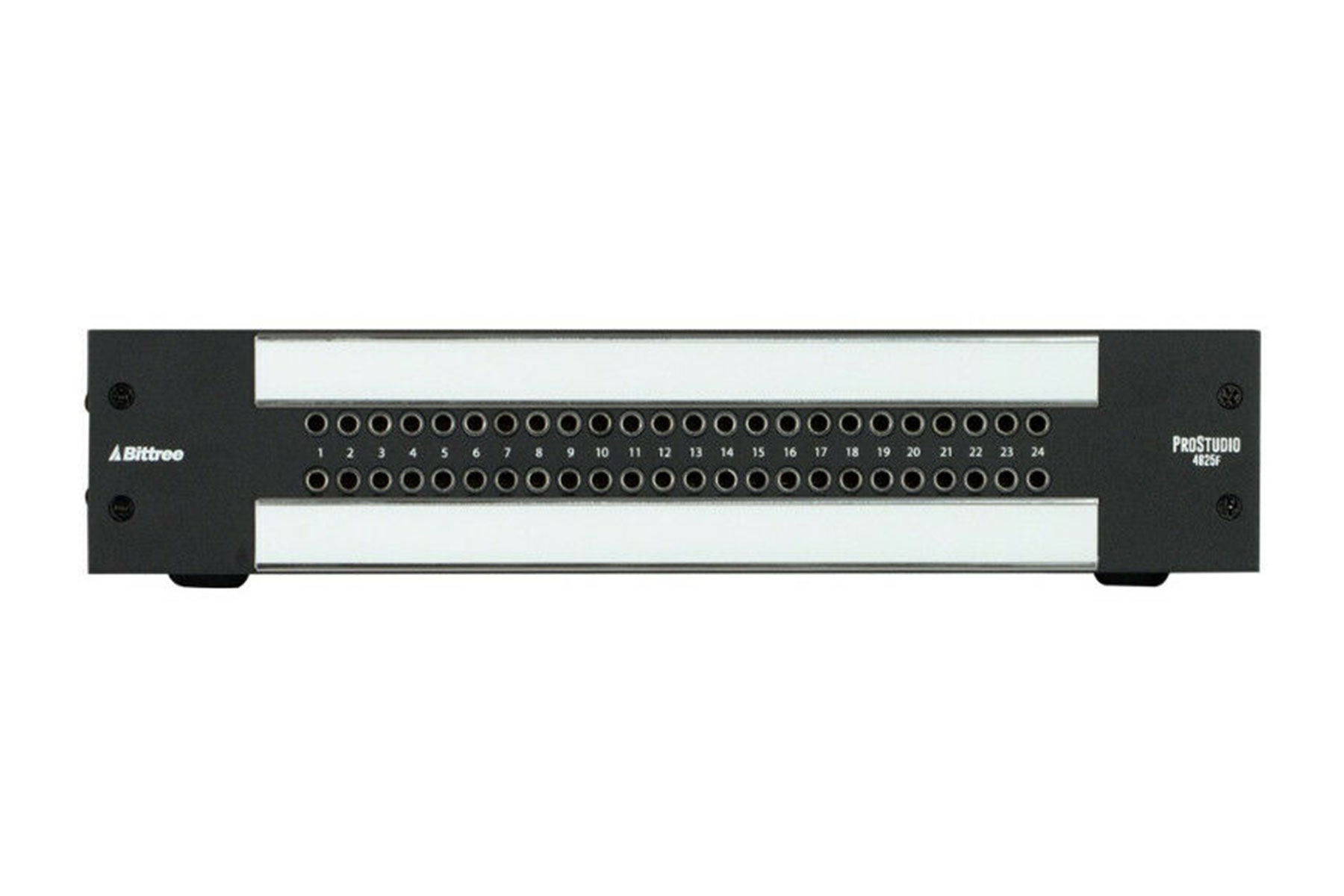

  • Front Selectable TT (Bantam) Audio Patchbay, 1.5RU Height, DB25 Rear Interface
  • Stand alone desktop patchbay with 4 rubber feet
  • Designed to fit perfectly below the API 500-6B 6-slot Lunchbox Chassis
  • 2x24 jack configuration with mono (even) jack spacing
  • DB25 rear interface (6 x 25-pin female DB25 connectors) - Protools, Tascam DB25 Pinout
  • Selectable normalling and grounding
    • Ships full normal with bussed grounds

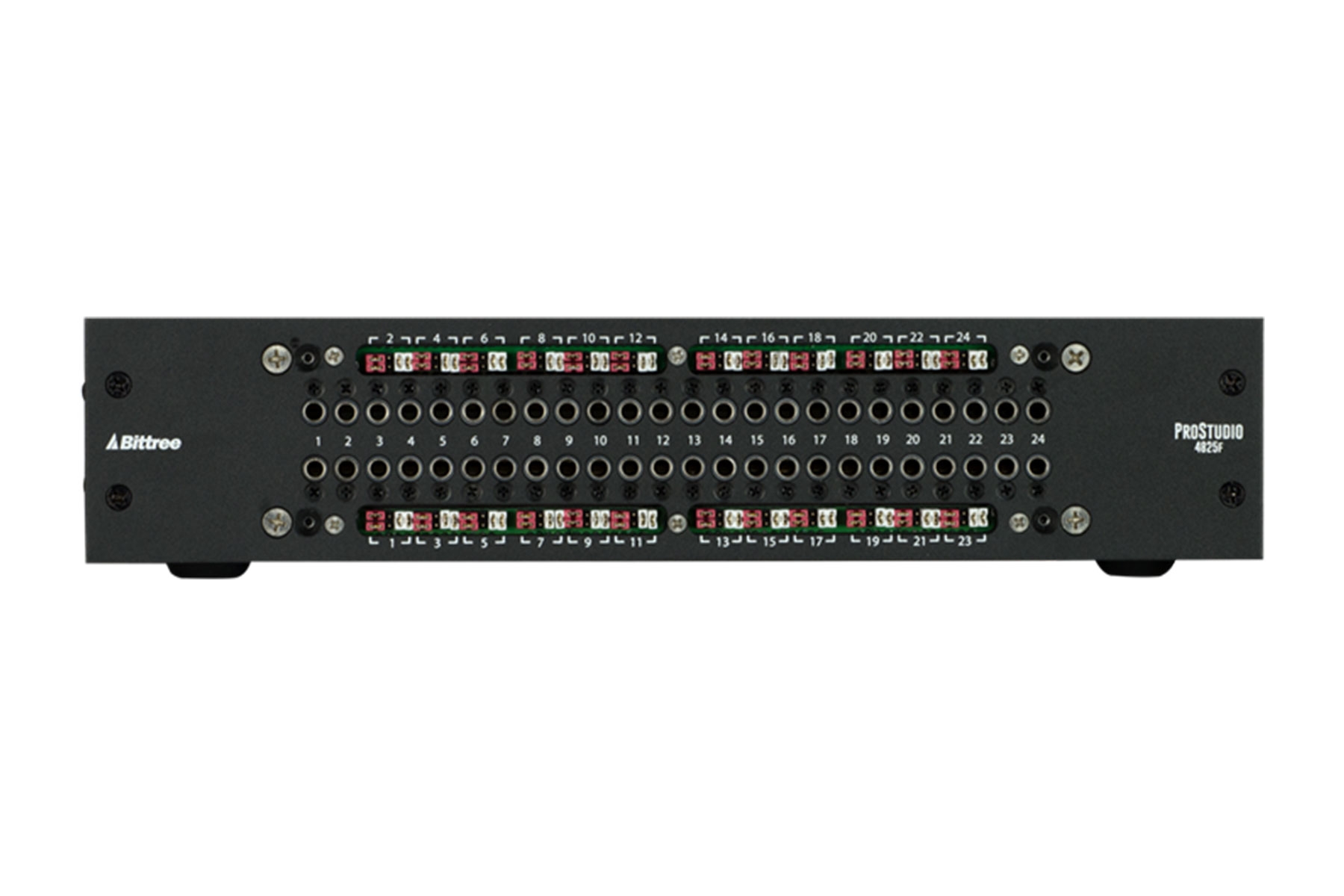

  • Circuits can be easily changed via shunts under both designation strips
    • Normalling – circuits can be set to full normal, half normal or non-normal
    • Grounding – can be set to bussed, isolated, or looped
  • Analog and Digital 110 ohm compatible
  • 1-24 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS-PS4825/S designation strips, "Over/Under" orientation
  • 7" (17.78 cm) deep fully enclosed chassis
  • RoHS Compliance

    • For more information on this or any other Bittree product, visit www.bittree.com.
